ATJH Series Axial Jet Fans for Parking Areas
- 25 ~ 145 N thrust range
- High efficiency aerodynamic blades
- 315 ~ 500 mm diameter range
- 300°C fire resistance certificate in compliance with EN 12101-3
- Galvanized steel sheet casing
- Diecast aluminum alloy fan impeller
- Ability to work reversible (on request)
- 2/4 poles double speed motor
- Motor with insulation class H
- IP55 Protection class

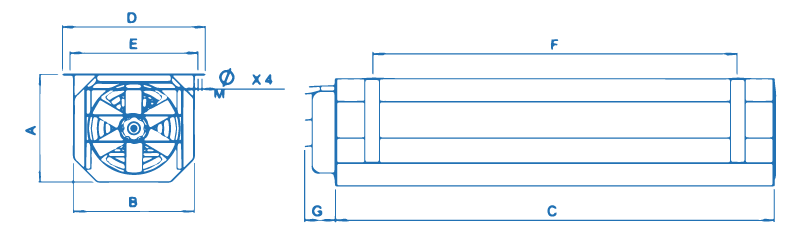

| Model | A | B | C | D | E | G | ØM |
|---|---|---|---|---|---|---|---|
| ATJH-315 | 369 | 413 | 1500 | 509 | 460 | 105 | 13 |
| ATJH-355 | 409 | 433 | 1650 | 529 | 479 | 105 | 13 |
| ATJH-400 | 473 | 482 | 1880 | 574 | 524 | 105 | 13 |
| ATJH-450 | 523 | 580 | 1990 | 712 | 652 | 105 | 13 |
| ATJH-500 | 572 | 673 | 2100 | 770 | 730 | 105 | 13 |
| Model | Thrust (N) | Motor Power (kW) | Current (A) | Motor Speed (rpm) | Noise @ 3m (dBA) |
|---|---|---|---|---|---|
| ATJH-315-2/4T | 25.00 | 0.8/0.2 | 2/0.6 | 2820/1400 | 64/49±3 |
| ATJH-355-2/4T | 45.00 | 1.1/0.25 | 2.4/0.75 | 2810/1390 | 67/52±3 |
| ATJH-400-2/4T | 70.00 | 1.5/0.37 | 3.5/1.3 | 2900/1435 | 71/56±3 |
| ATJH-450-2/4T | 105.00 | 2.2/0.5 | 4.6/1.5 | 2845/1420 | 75/60±3 |
| ATJH-500-2/4T | 145.00 | 4.4/1.1 | 8.6/2.8 | 2890/1440 | 78/63±3 |
